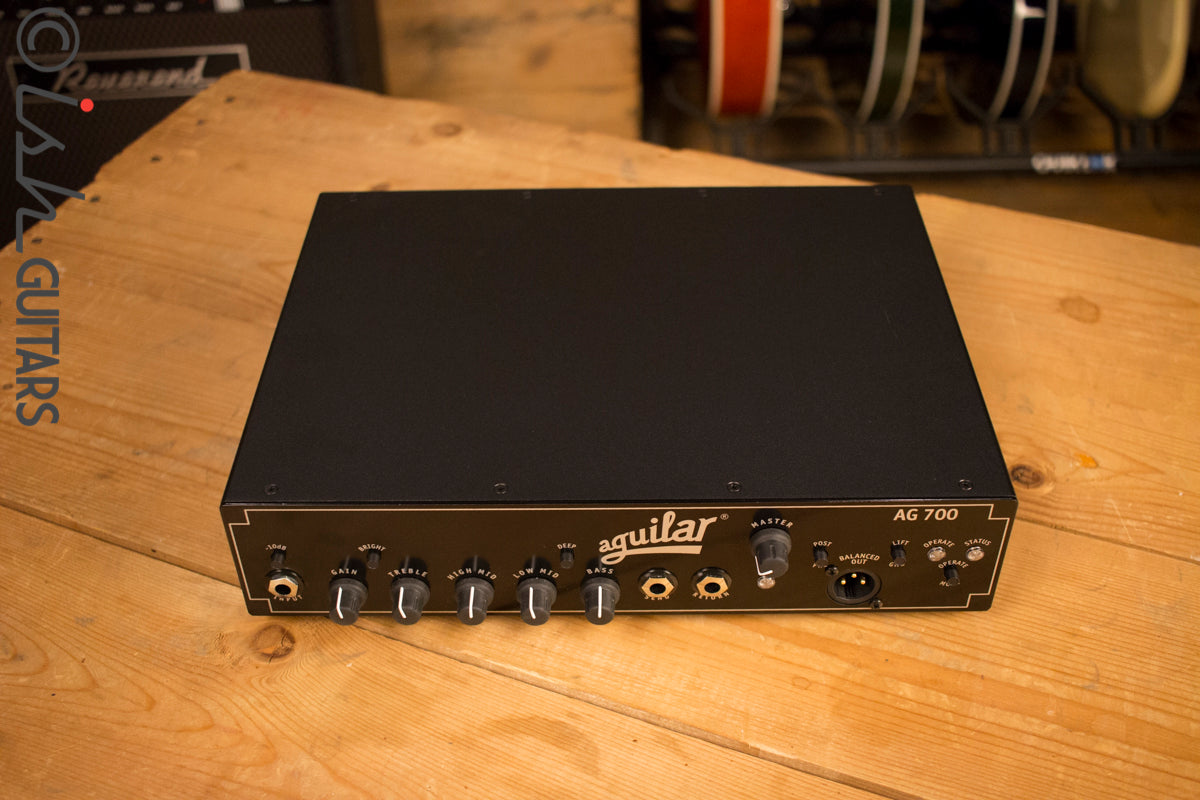

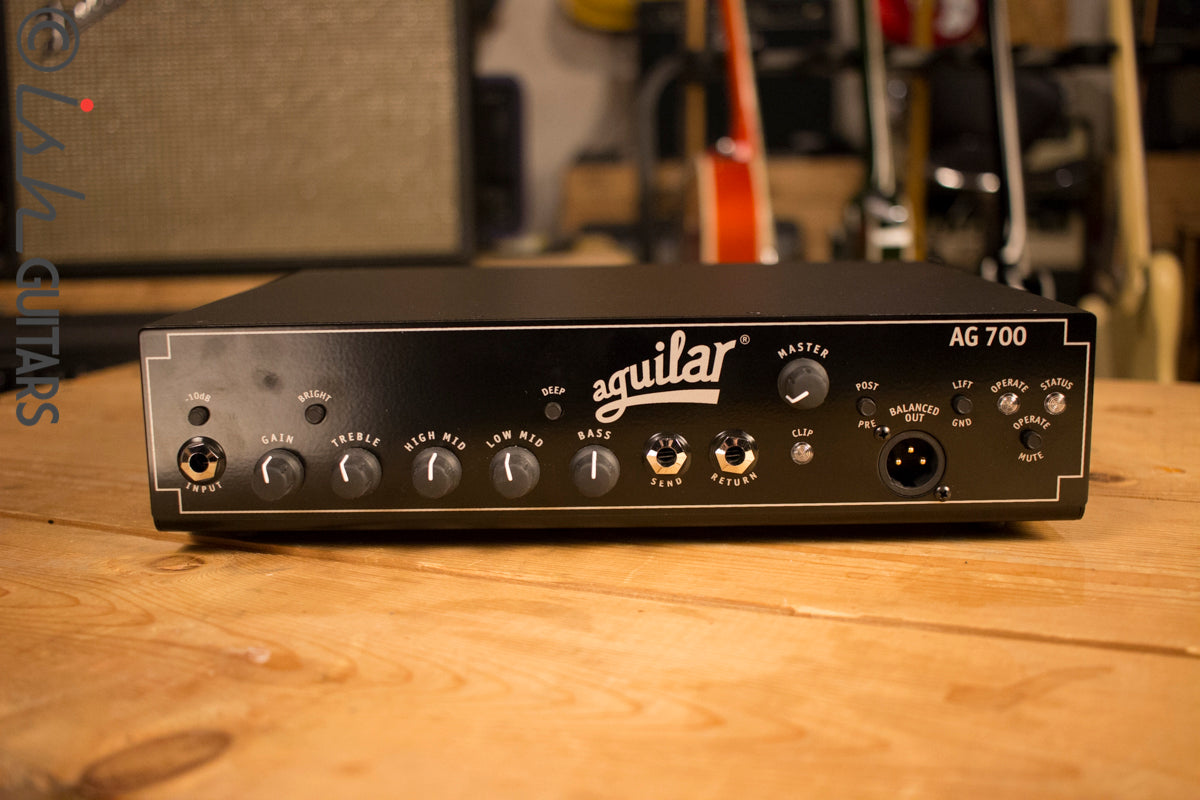

The AG 700 has the clarity, dynamic range and fast transient response of the legendary AG 500 with a bigger low-end and high headroom. This solid state amplifier provides 700 continuous watts at 4 ohms while only weighing 4.9 lbs. (2.22 kg)!
Boasting an incredibly flexible EQ section, the AG 700 features controls for Treble, High Mid, Low Mid and Bass along with Deep and Bright EQ switches for a broadband boost. The AG 700 also features a series effects loop, XLR balanced output and two rear panel speakon outputs.
Power Output: 700 watts @ 2.67 or 4 ohms, 350 watts @ 8 ohms
Preamp Section: Solid State
Power Section: Class D
Transformer: Switching mode power supply (SMPS)
EQ Section:
Bass: +/- 17 dB @ 40 Hz
Deep: +6 dB <250 Hz
Low Mid: +/- 15 dB @ 300 Hz
High Mid: +/- 14dB @ 800 Hz
Treble: +/- 14 dB @ 4 kHz
Bright: +6 dB >3 kHz, shelving
-10dB input pad
Tuner output
Inputs: One 1/4" input jack, compatible with all active and passive basses

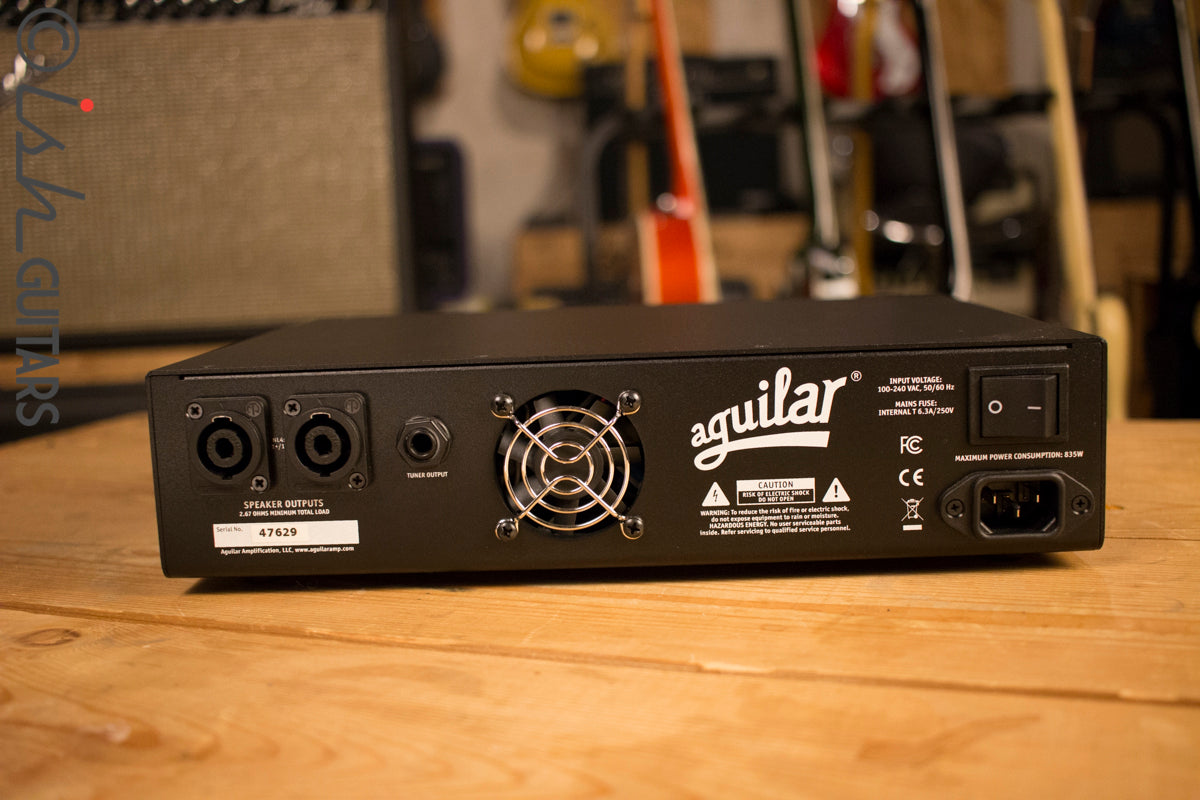

Speaker Outputs: Two Neutrik Speakon speaker outputs
Effects Loop: Series operation. Adds 6 dB of additional gain, making it useful for a broad range of effects units.
Balanced Output: XLR balanced output with pre/post EQ and ground lift switch
Cooling: Two High quality whisper fan with thermal speed control
Dimensions: 12" W x 9" D x 3" H
Weight: 4.9 lbs
Warranty: Three year limited
